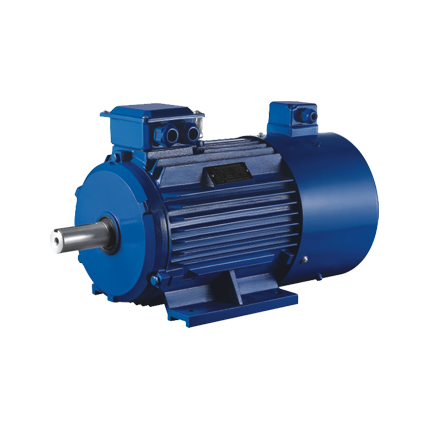

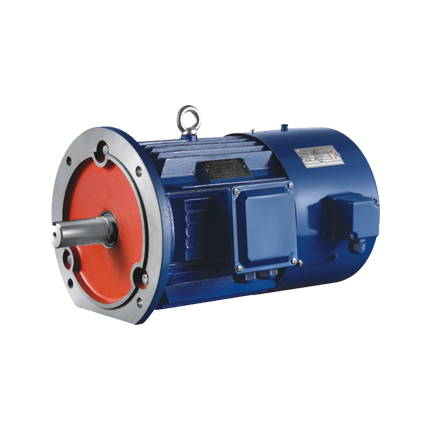

YVF2 series special three-phaseasynchronous motor
  • YVF2 series special three-phaseasynchronous motor
  • YVF2 series special three-phaseasynchronous motor

YVF2 series special three-phaseasynchronous motor

Product Features
YVF2 series special three-phase asynchronous motor forfrequency conversion speed regulation This series of motorsis a combination of three-phase asynchronous motor forfrequency conversion speed regulation and electronic inverter,which can realize stepless speed regulation in the range of150~2750rpm (4 poles).ldeal power for machinery andequipment requiring a wide range of stepless speed regulation.Widely used in transportation, metallurgy, textile, printingand dyeing, chemical industry, mining, fan, water pump andother industries.lts electrical performance and installationdimensions are manufactured in accordance with the nationalstandard JB/T7118,and are in line with internationallECstandards.
Working Conditions

Base Center Height

80~355tnm

Power Range

0.55~315kw

Rated voltage

380V

Rated Power

50Hz/60Hzo

Protection Class

lP55

lnsulation Class

F Class

Duty

Continuous Duty S1

The lnstallation Type ls The Same As The Y2 Series

CONTACT US

Description

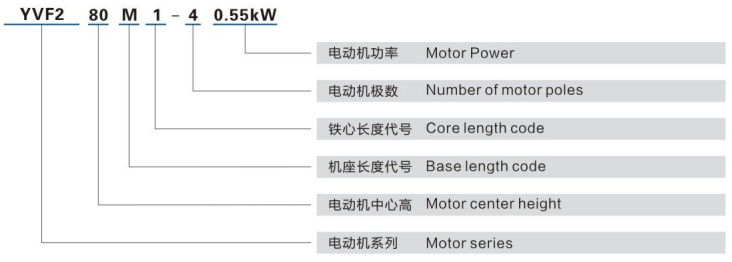

NOMENCLATURE

Technical Data

Type

Power(KW)

Current(A)

Rated torque(N.m)

(Hz)

(Hz)

Tst/TN

Ist/IN

TMax/TN

TMax/TN

YVF2-80M1-4

0.55

1.5

3.5

5-50

3-50

2.0

9.0

2.8

1.7

YVF2-80M2-4

0.75

2.0

4.7

5-50

3-50

2.0

9.0

2.8

1.6

YVF2-90S-4

1.1

2.8

7.0

5-50

3-50

2.0

9.0

2.8

1.6

YVF2-9OL-4

1.5

3.7

9.5

5-50

3-50

2.0

9.0

2.8

1.6

YVF2-100L-4

2.2

5.1

14

5-50

3-50

2.0

9.0

2.8

1.5

YVF2-10Q2-4

3.0

6.8

19

5-50

3-50

2.0

9.0

2.8

1.5

YVF2-112M-4

4.0

8.7

25.4

5-50

3-50

2.0

9.0

2.8

1.5

YVF2-132S-4

5.5

11.4

35

5-50

50-100

2.0

9.0

2.8

1.4

YVF2-132M-4

7.5

15.3

47.7

5-50

50-100

2.0

9.0

2.8

1.4

YVF2-16OM-4

11

22.1

70

5-50

50-100

2.0

9.0

2.8

1.4

YVF2-160L-4

15

30.1

95.5

5-50

50-100

2.0

9.0

2.8

1.4

YVF2-180M-4

18.5

35.4

117.1

5-50

50-100

2.0

9.0

2.8

1.2

YVF2-180L-4

22

41.6

140.9

5-50

50-100

2.0

9.0

2.8

1.2

YVF2-200L-4

30

55.9

190.9

5-50

50-100

2.0

9.0

2.8

1.2

YVF2-225S-4

37

68.2

235.5

5-50

50-100

2.0

9.0

2.8

1.2

YVF2-225M-4

45

82.5

286.4

5-50

50-100

2.0

9.0

2.8

1.1

YVF2-25OM-4

55

101

350.1

3-50

50-100

1.7

9.0

2.8

1.1

YVF2-280S-4

75

132.3

477.5

3-50

50-100

1.7

9.0

2.8

1.0

YVF2-280M-4

9o

157.4

572.9

3-50

50-100

1.7

9.0

2.8

1.0

YVF2-315S-4

110

191.4

700.2

3-50

50-100

1.7

9.0

2.8

1.0

YVF2-315M-4

132

227.6

840.3

3-50

50-100

1.7

9.0

2.8

1.0

YVF2-315L1-4

160

274.2

1018.1

3-50

50-100

1.7

9.0

2.8

1.0

YVF2-315L2-4

200

341.6

1273.2

3-50

50-100

1.7

9.0

2.8

0.9

YVF2-355M1-4

220

367.5

1401

3-50

50-100

1.7

9.0

2.8

0.9

YVF2-355M2-4

250

420.9

1592

3-50

50-100

1.7

9.0

2.8

0.9

YvF2-355L1-4

280

470.3

1783

3-50

50-100

1.7

9.0

2.8

0.9

YVF2-355L2-4

315

528.2

2006

3-50

50-100

1.7

9.0

2.8

0.9

YVF2-8OM1-6

0.37

1.26

3.5

15-50

50-100

1.8

9.0

2.6

1.7

YVF2-80M2-6

0.55

1.74

5.3

15-50

50-100

1.8

9.0

2.6

1.6

YVF2-90s-6

0.75

2.03

7.2

15-50

50-100

1.8

9.0

2.6

1.6

YVF2-90L-6

1.1

2.84

10.5

15-50

50-100

1.8

9.0

2.6

1.6

YVF2-100L-6

1.5

3.70

14.3

15-50

50-100

1.8

9.0

2.6

1.5

YVF2-112M-6

2.2

5.22

21

15-50

50-100

1.8

9.0

2.6

1.5

YVF2-132S-6

3.0

6.98

25.7

15-50

50-100

1.8

9.0

2.6

1.5

YVF2-132M1-6

4.0

9.17

38.2

15-50

50-100

1.8

9.0

2.6

1.4

YVF2-132M2-6

5.5

12.2

52.5

15-50

50-100

1.8

9.0

2.6

1,4

YVF2-160M-6

7.5

16.5

71.6

15-50

50-100

1.8

9.0

2.6

1.4

YVF2-16OL-6

11

23.5

105

15-50

50-100

1.8

9.0

2.6

1.4

YVF2-18OL-6

15

30.5

143

15-50

50-100

1.8

9.0

2.6

1.2

YVF2-200L1-6

18.5

37.2

177

15-50

50-100

1.8

9.0

2.6

1.2

YVF2-200L2-6

22

43.0

210

15-50

50-100

1.8

9.0

2.6

1.2

YVF2-225M-6

30

58.0

287

15-50

5O-100

1.8

9.0

2.6

1.2

YVF2-250M-6

37

69.5

353

20-50

50-100

1.5

9.0

2.6

1.1

YVF2-280S-6

45

84.1

430

20-50

50-100

1.5

9.0

2.6

1.1

YVF2-28OM-6

55

102

525

20-50

50-100

1.5

9.0

2.6

1.0

YvF2-315S-6

75

138

716

20-50

50-100

1.5

9.0

2.6

1.0

YVF2-315M-6

90

166

860

20-50

50-100

1.5

9.0

2.6

1.0

YVF2-315L1-6

110

202

1050

20-50

5O-100

1.5

9.0

2.6

1.0

YVF2-315L2-6

132

239

1261

20-50

50-100

1.5

9.0

2.6

1.0

YVF2-355M1-6

160

2s5

1528

20-50

50-100

1.5

9.0

2.6

0.9

YVF2-355M2-6

200

356

1910

20-50

50-100

1.5

9.0

2.6

0.9

YVF2-355L-6

250

445

2388

20-50

50-100

1.5

9.0

2.6

0.9
